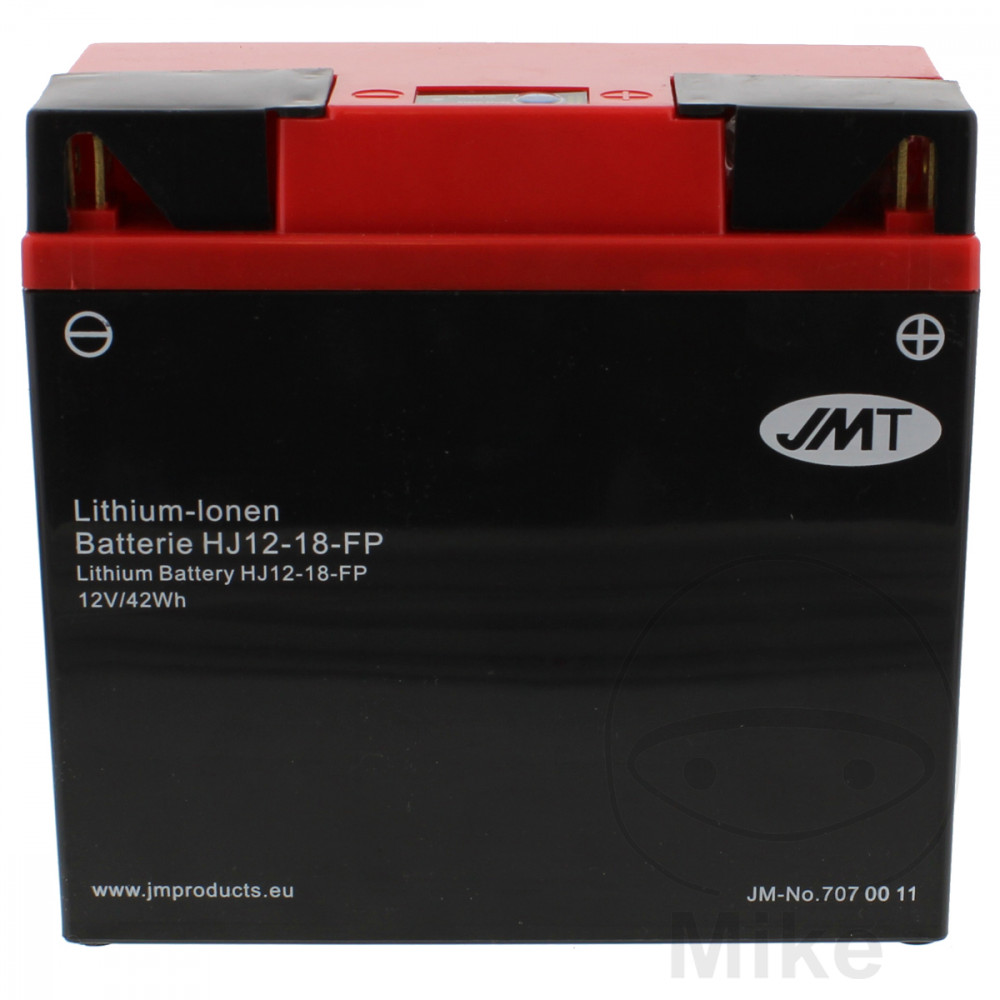

Battery Garden HJ12-18-FPJMT Lithium-Ion with On/Off Switch

Lithium-Ion Batteries from JMT



Batteries of the latest generation identifiable by the red housing cover.



Included in the delivery

Foam blocks

5 x 120 x 90 x 7 (mm)

1 x 120 x 90 20 (mm)



Sleep Mode

Pressing the Power ON/OFF button for about 3 seconds causes a red blinking of the

LED status indicator and the electrical separation of the battery terminals from the actual battery.

Pressing again for 3 seconds causes a green blink and the battery can be used "normally" again.

WARNING: If the battery is not loaded or charged for a few minutes, it will automatically turn off. Before the battery is needed again, it must be turned on again.



Waterproof (W)

The battery is completely waterproof and will not be damaged when the motorcycle is cleaned with high pressure.



By replacing a standard lead-acid battery with a JMT lithium-ion battery, up to 5 kg of weight can be saved without significant effort.



The following advantages speak for JMT lithium-ion batteries:

- about 1/3 the weight of comparable lead-acid batteries

- unbeatable cost/weight savings ratio

- can be installed in any position, as no acid is contained

- contains no heavy metals

- balanced discharge/charge of all cells through balancer

- fast charging with high charging current possible (up to 90% in 6 min)

- very low self-discharge (max. 5% per month)

- still good performance at high temperatures up to 60°C

- safe technology and long lifespan



Lead-acid batteries can only utilize 30% of their capacity due to their specific properties,

while lithium-ion batteries can utilize nearly 100% of their capacity.



For this reason, the lithium versions of the JMT batteries require only 1/3 of the capacity of a comparable lead-acid battery for the same starting performance.

A uniform state of charge of all cells is also ensured by a built-in processor ("balancer").

The dimensions of the lithium-ion batteries correspond to the dimensions of the original lead-acid batteries with the help of adapters.

The connections are also identical, which is why the battery can be replaced in just a few minutes without further adjustments.



Please note that only suitable chargers should be used for charging, such as the JMP 800, JMP 4000, or the corresponding workshop devices.

For fast charging, we recommend the JMP 30000 Pro workshop device. This can recharge a lithium-ion battery to 90% within just 6 minutes.

The maximum recommended charging currents can be found in the technical data below.



Under no circumstances should chargers be used that attempt to desulfate deeply discharged batteries below 10 volts with a voltage of more than 14.9 volts before they begin the actual charging.

The maximum charging voltage of 14.9 volts must not be exceeded under any circumstances.



The manufacturer guarantees sufficient starting capacity down to -5 degrees Celsius.



Technology

JMT lithium-ion batteries use iron phosphate (LiFePO4) as cathode material and employ the lithium-polymer process in manufacturing.

This means they cannot catch fire or explode under normal operating conditions.

The technology and manufacturing process ensure the highest safety standards for lithium batteries.



- 12 V maintenance-free lithium-ion battery

- Recommended charging current 3.5 A

- maximum charging current for fast charging 28 A
