Brake pads & brake discs

Bleed ScrewTechnical Data:Thread: M10 x 1.00 Length: single Color: blue with Bleed Valve: Yes with Brake Light Switch: No Material: Titanium Manufacturer: Probolt

Bleed ScrewTechnical Data:Thread: M10 x 1.00 Length: single Color: gold with Bleed Valve: Yes with Brake Light Switch: No Material: Titanium Manufacturer: Probolt

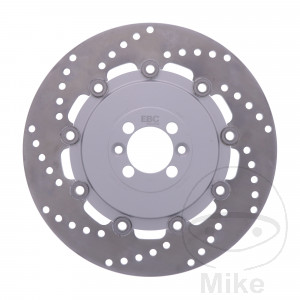

  Brembo brake discs EBC. MADE IN UK. The goal in development is to improve braking performance compared to the original brake disc. EBC uses HPSR steel with a low carbon content, which has an 18% higher coefficient of friction. This steel is significantly more resistant to rust than cast steel. Additionally, the entire surface is protected with a 3-micron thick zinc coating, which wears off in the brake pad contact zone during the bedding-in process. Only in this area can light surface rust form after prolonged periods of inactivity.   The brake discs are drilled in a bird wing design to minimize the number of holes while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the lower the wear.   - Rigid brake disc. - Made from rolled HPSR steel with low carbon content. - Brake surface drilled with an optimized hole pattern. - Radially ground. - Galvanized for corrosion protection. - EBC recommends EBC Organic brake pads or for sporty riders EBC Double-H sintered brake pads. - Standalone design.      Technical Data:Outer Diameter:   285 mmInner Diameter:   51.2 mmBolt Circle:   68 mmNumber of Holes:   2    4 Hole Diameter:   4 mmThickness:   4.7 mmOffset:   15 mmDesign:   floating Manufacturer:   EBC

Brake Caliper Piston Repair Kit 38mm For models with dual disc.

Brake Caliper ScrewTechnical Data:Type: Threaded Screws Thread: M10 x 1.5 Length: 25 mmHead: Cylinder Head Drive: Internal Hexagon Surface: No Finishing Material: Stainless Steel Color: Silver Grade: 8.8 O-Ring/Washers: None Manufacturer: Other For Safety Wire: No

Brake light switch / Clutch switch

SP Sintermetall Straßenbremsbelage für hinten (SP) Eine gesinterte Mischung, die speziell für Hinterradbremsen (SP) entwickelt wurde und unter allen Betriebsbedingungen eine verbesserte Bremsleistung bietet. Eine ideale Alternative zu OE-Bremsbelägen für eine optimale Leistung auf der Straße.

Fahrzeugspezifische Information:  Für Brembo Sattel Standard Belag Organisch mit Keramik-Underlayer zur Wärmedämmung . Antikorrosionslackierung , hohe Lebensdauer . Auf allen Scheiben verträglich . Solide Bremsleistung , gutes Naßbremsverhalten . Für Vorder und Hinterachse geeignet .

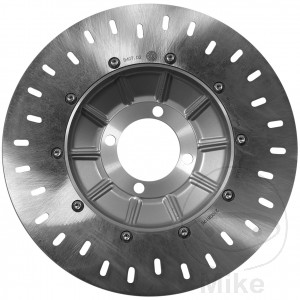

Die Festscheiben der Brembo Oro-Serie werden in einem Guss aus Edelstahl hergestellt. Die Fertigung entspricht hierbei den strengen Toleranzen im Bezug auf die Konstruktions- und Bauart. Durch die Bearbeitungszyklen wird eine maximale Eignung und Rundlaufsicherheit gewährleistet.   Brembo konnte aufgrund seiner umfangreichen Erfahrung die geeigneten Formen, Toleranzen und Größen für jeden Motorradtyp und Einsatz bestimmen. Tatsächlich verbessert die spezielle Formgebung der Brembo-Scheiben durch eine sorgfältige Untersuchung der Bearbeitungstoleranzen die Übertragung des Bremsmoments und bietet gleichzeitig eine verbesserte Resistenz gegen mechanische und thermische Belastungen.

Die Festscheiben der Brembo Oro-Serie werden in einem Guss aus Edelstahl hergestellt. Die Fertigung entspricht hierbei den strengen Toleranzen im Bezug auf die Konstruktions- und Bauart. Durch die Bearbeitungszyklen wird eine maximale Eignung und Rundlaufsicherheit gewährleistet.   Brembo konnte aufgrund seiner umfangreichen Erfahrung die geeigneten Formen, Toleranzen und Größen für jeden Motorradtyp und Einsatz bestimmen. Tatsächlich verbessert die spezielle Formgebung der Brembo-Scheiben durch eine sorgfältige Untersuchung der Bearbeitungstoleranzen die Übertragung des Bremsmoments und bietet gleichzeitig eine verbesserte Resistenz gegen mechanische und thermische Belastungen.

Vehicle-Specific Information: for double disc EBC Brake Pads Double - H Sinter Material MADE IN USA, among others for motorcycles with original sintered pads A quality with the highest braking power, extreme durability, and no fading, especially for use in heavy and fast machines or in road racing. Perfectly suitable for INOX or EBC Pro-Lite brake discs. Brake pads are also optimal for cast brake discs. Double - H brake pads are TÜV certified and have an ABE.

Vehicle-Specific Information:  for double discEBC Standard Brake Pads The EBC version SK930/ SK931/ SK932/ SK933/ SK934 contains aramid fibers that are 6 times stronger than steel and completely asbestos-free. Only low-emission components are used in production. These standard materials exceed all previous EBC standard qualities. The material mixtures, including the aramid fibers, guarantee better braking performance. High friction stability and very good temperature resistance. The lifespan is very high, and the disc wear is low. These qualities maintain their excellent properties under all weather conditions. EBC standard brake pads are TÜV certified and have an ABE.

Vehicle-Specific Information:  from 01.08.1988 for 2 disc brakeEBC Brake Pads Standard The EBC version SK930/ SK931/ SK932/ SK933/ SK934 contains aramid fibers that are 6 times stronger than steel and completely asbestos-free. Only low-emission components are used in production. These standard materials exceed all previous EBC standard qualities. The material mixtures, including the aramid fibers, guarantee better braking performance. High friction stability and very good temperature resistance. The lifespan is very high, and the disc wear is low. These qualities maintain their excellent properties under all weather conditions. EBC standard brake pads are TÜV certified and have an ABE.

Vehicle-Specific Information:  for double discSV - Friction Material CompositionFull metallic sintered material with special coating.High friction coefficient guarantees very good performance.Can be used on almost all discs.Only in exchange for sintered materials in the original equipment.Only conditionally suitable for motorsport, as there is no heat resistance above 400 degrees.Only suitable for the front axle.

Hauptbremszylinder   Originalersatzteil   Kolben Ø 16mm

Main Brake Cylinder 13mm

Original BMW Spare Part The brakes of your motorcycle are the most important component when it comes to safety. Therefore, they must always be in perfect working order. After all, it can sometimes come down to millimeters and milliseconds. We recommend using original BMW brake pads on the original brake discs. BMW has coordinated the materials of the brake disc and brake pad to work together. This means optimal braking performance with minimal wear. Additionally, the fastening parts on the brake calipers should be regularly replaced. They are also subject to wear. Only when everything in the braking system is free to move can it operate optimally!

Vehicle-Specific Information:  from 01.08.1988 for 2 disc brakesSA Sintered Metal Street Brake Pads for Front (SA) A sintered mixture specifically designed for front wheel brakes that offers improved braking performance under all operating conditions. An ideal alternative to OE brake pads for optimal performance on the road.

Vehicle-Specific Information:  for double discStandard lining Organic with ceramic underlayer for thermal insulation. Anti-corrosion coating, high durability. Compatible with all discs. Solid braking performance, good wet braking behavior. Suitable for front and rear axle.

Bleed ScrewTechnical Data:Thread: M10 x 1.00 Length: single Color: black with Bleed Valve: Yes with Brake Light Switch: No Material: Titanium Manufacturer: Probolt
